Flow Control Valve: A Comprehensive Guide (functions, selection and problem handling)
2025-08-14

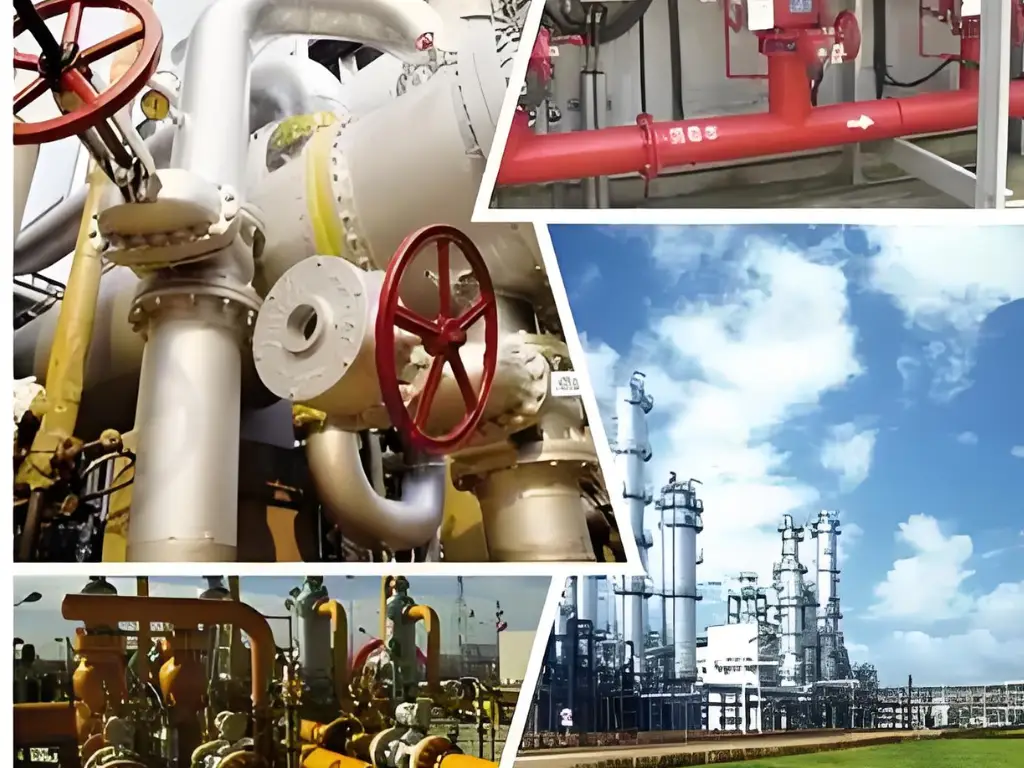

In the intricate world of fluid systems, flow control valves stand as crucial components, playing a pivotal role in regulating the movement of liquids and gases. Whether in industrial settings such as oil refineries, chemical plants, or in more common applications like plumbing systems and HVAC units, these valves ensure that fluid flow is maintained at the desired levels, contributing to the efficient and safe operation of various processes.
If you have any questions about valves in your project and don't know how to choose or how to select valves that match your project, you can consult a professional valve manufacturer. They can provide some information about pipelines based on your project situation, customize valves for you, and offer professional solutions.
If you have any questions about valves in your project and don't know how to choose or how to select valves that match your project, you can consult a professional valve manufacturer. They can provide some information about pipelines based on your project situation, customize valves for you, and offer professional solutions.
- Quick Table of Contents
- Whats is a Flow Control Valve?
- How Does a Flow Control Valve Work?
- Types of Flow Control Valves
- The Function of a Flow Control Valve
- Factors to Consider While Selecting a Control Valve
- Flow Control Valve Symbol
- Actuator Valve
- How to Stop Leaking at Control Valve and Riser
What is a Flow Control Valve?
A flow control valve is a device designed to manage the rate of fluid flow within a system. It serves as a gatekeeper, allowing or restricting the passage of fluids based on the requirements of the system. This is achieved through a combination of mechanical components that work in harmony to control the flow rate. For instance, it typically consists of a valve body, which houses the internal components, and a movable element such as a plug, disc, or ball. The position of this movable element within the valve body determines the size of the flow passage, thereby controlling the amount of fluid that can pass through.
How Does a Flow Control Valve Work?
The operation of a flow control valve is based on the principle of resistance. When the valve is in an open position, the flow passage is relatively large, allowing fluid to flow with minimal resistance. As the valve begins to close, the movable element restricts the flow area, increasing the resistance to fluid flow. This results in a decrease in the flow rate. For example, in a globe valve, which is a type of flow control valve, the movement of the plug up and down within the valve body adjusts the flow area. When the plug is lifted, the flow area increases, and fluid can flow more freely. Conversely, when the plug is lowered, it reduces the flow area, thereby reducing the flow rate.
Types of Flow Control Valves
Globe Valves
Globe valves are widely used in applications where precise flow control is required. Their design allows for a high degree of throttling, making them suitable for regulating flow in systems where accurate control is essential. The internal structure of a globe valve consists of a body with a spherical - shaped chamber, a seat, and a movable plug. The plug is attached to a stem, which is operated by a handwheel or an actuator. As the handwheel is turned, the stem moves the plug up or down, changing the flow area between the plug and the seat.
Ball Valves
Ball valves are known for their quick - opening and closing action. They feature a spherical ball with a hole in the middle. When the valve is open, the hole in the ball is aligned with the flow path, allowing fluid to pass through with minimal resistance. Rotating the ball 90 degrees using a handle or an actuator closes the valve, as the solid part of the ball blocks the flow path. Ball valves are often used in applications where a tight shut - off is required, such as in gas pipelines or in systems where rapid isolation of fluid flow is necessary.
Needle Valves
Needle valves are designed for applications that demand extremely precise flow control. They have a long, tapered needle - like plug that fits into a small orifice. The fine - tuning ability of needle valves makes them ideal for applications such as laboratory equipment, where small and accurate adjustments to fluid flow are crucial. By turning the handle, the needle is moved in or out of the orifice, precisely controlling the amount of fluid that can pass through.
The Function of a Flow Control Valve
The primary function of a flow control valve is to maintain a stable and desired flow rate within a fluid system. This is essential for several reasons. In industrial processes, such as chemical reactions, maintaining a specific flow rate of reactants is crucial for ensuring the reaction proceeds as expected. If the flow rate is too high or too low, it can lead to inefficient reactions, product quality issues, or even safety hazards. In a heating or cooling system, a flow control valve regulates the flow of hot or cold water, ensuring that the desired temperature is maintained in different areas. Additionally, flow control valves can be used to protect other components in the system from damage due to excessive flow. For example, they can prevent pumps from being overloaded by controlling the flow rate of the fluid they are pumping.
Factors to Consider While Selecting a Control Valve
Flow Rate Requirements
The first and foremost factor to consider when selecting a control valve is the expected flow rate. It is essential to choose a valve that can handle the maximum and minimum flow rates required by the system. The valve's flow capacity is typically specified in terms of its Cv value (flow coefficient), which indicates the volume of water in gallons per minute that can flow through the valve at a pressure drop of 1 psi. By calculating the required Cv value based on the system's flow rate and pressure drop, you can select a valve with an appropriate flow capacity.
Pressure and Temperature Conditions
The operating pressure and temperature of the fluid also play a significant role in valve selection. Different valves are designed to handle specific pressure and temperature ranges. For example, in high - pressure applications, valves with a robust construction and suitable materials are required to withstand the pressure without leakage or failure. Similarly, in high - temperature environments, valves made of heat - resistant materials are necessary. If the fluid is corrosive, valves with corrosion - resistant materials such as stainless steel or special alloys should be chosen.
Type of Fluid
The nature of the fluid being controlled is another important consideration. Viscous fluids may require valves with larger flow passages or special designs to ensure smooth flow. Fluids containing solids or particles may need valves with features to prevent clogging, such as larger orifices or self - cleaning mechanisms. In applications involving toxic or hazardous fluids, valves with tight shut - off capabilities and high - integrity seals are essential to prevent leaks and ensure safety.
Control Method
There are different ways to control a valve, such as manual control, pneumatic control, hydraulic control, or electric control. The choice of control method depends on the application requirements. Manual valves are suitable for applications where infrequent adjustments are needed and where automation is not necessary. Pneumatic and hydraulic control valves are often used in industrial settings where fast - acting and precise control is required. Electric control valves are popular in applications where remote control and integration with automation systems are important.
We recommend this valve to you. You can take it as a reference. Based on your project and medium conditions, determine your connection method and size, etc. Then you can select the valve that suits you. If you have any valve-related questions and need us to provide solutions, you can contact us at DELCO at any time.
| DELCO three-way pneumatic control valve | pneumatic control valve |
| Nominal Diameter Range | from 25Nm to 300Nm |
| Medium Temperature | -20~200°C, -40~250°C ,-40~315°C |
| Supports pressure | 1.6~6.4Mpa |
| Body Material | 304, 316, 316L stainless steel or WCB |
Flow Control Valve Symbol
In piping and instrumentation diagrams (P&ID), flow control valves are represented by specific symbols. These symbols are standardized to provide a clear and universal way of communicating the presence and function of valves in a system. The basic symbol for control valve typically consists of a circle with a line through it, which represents the valve body. The type of valve can be further indicated by additional symbols or annotations. For example, a globe valve may have a more detailed symbol that shows the internal structure of the valve, such as the plug and seat. Ball valves are often represented by a circle with a diagonal line through it, which indicates the position of the ball within the valve body. These symbols help engineers, technicians, and operators to quickly identify and understand the role of flow control valves in a complex fluid system.
Actuator Valve
An actuator is an essential part of many control valves, especially those that require automated or remote control. The actuator is responsible for moving the valve's movable element (such as the plug, disc, or ball) to control the flow rate. There are different types of actuators, each with its own advantages and applications.
Pneumatic Actuators
Pneumatic actuators use compressed air to generate the force required to move the valve. They are known for their fast response times and are commonly used in industrial applications where quick - acting control is necessary. Pneumatic actuators can be either double - acting, where compressed air is used to both open and close the valve, or single - acting, where compressed air is used to either open or close the valve, and a spring is used to return the valve to its original position.
Electric Actuators
Electric actuators use an electric motor to drive the valve. They offer precise control and are easy to integrate with automation systems. Electric actuators can be programmed to operate based on signals from sensors or control systems, allowing for highly automated control of the valve. They are often used in applications where remote control and accurate positioning of the valve are required, such as in power plants or water treatment facilities.
Hydraulic Actuators
Hydraulic actuators use hydraulic fluid under pressure to move the valve. They can generate high forces, making them suitable for applications where large - scale valves or valves in high - pressure systems need to be controlled. Hydraulic actuators are known for their reliability and ability to provide smooth and precise control. They are commonly used in heavy - duty industrial applications, such as in oil and gas pipelines or in large - scale manufacturing plants.
How to Stop Leaking at Control Valve and Riser
Leakage in control valves and risers can be a significant problem, as it can lead to inefficiencies, safety hazards, and environmental pollution. There are several common causes of leakage and corresponding solutions.
Seal Surface Wear or Damage
Over time, the sealing surfaces of the valve, such as the valve seat and the disc or plug, can experience wear due to the constant flow of fluid, erosion by particles in the fluid, or corrosion. This can result in gaps between the sealing surfaces, allowing fluid to leak. To address this issue, the damaged sealing surfaces may need to be repaired or replaced. In some cases, if the wear is minor, the surfaces can be polished or ground to restore their smoothness and proper sealing. However, if the damage is extensive, new components may be required.
Packing Aging or Gland Loosening
Valve stems are typically sealed using packing materials, such as graphite or PTFE. Over time, these packing materials can age, dry out, or crack, especially in high - temperature or high - pressure environments. Additionally, the gland that holds the packing in place may become loose, allowing fluid to leak around the valve stem. To fix this, the packing may need to be replaced with new, high - quality packing materials. The gland should also be properly tightened to ensure a secure seal. In some cases, adding a lubricant to the packing can help improve its performance and extend its lifespan.
Casting Defects or Corrosion Perforation in Valve Body / Bonnet
Some valves may have casting defects, such as small holes or voids, which can develop into leakage points over time. Exposure to corrosive fluids can also cause the valve body or bonnet to develop perforations. If the leakage is due to casting defects, the valve may need to be repaired using methods such as welding or patching. For corrosion - related issues, using corrosion - resistant coatings or replacing the valve with a valve made of more suitable materials can prevent further leakage.
Valves need regular inspection and maintenance. You can learn more about how to prevent valve leakage.
Conclusion
Flow control valves are essential components in a wide range of fluid systems, from industrial processes to everyday applications. Understanding their function, types, selection criteria, and how to address common issues such as leakage is crucial for ensuring the efficient, safe, and reliable operation of these systems. By choosing the right flow control valve and actuator, and by taking appropriate measures to prevent and fix leaks, engineers and operators can optimize the performance of fluid systems and avoid costly problems.
