How To Properly Store And Maintain Backup Gate Valves
Here will be based on the specific safety conditions of gate valves made of different materials, conduct an in-depth analysis of the key points for the maintenance and storage of gate valves, and provide targeted and practical guidance for enterprises and practitioners. It aims to help effectively avoid damage risks such as corrosion and oxidation, extend the service life of gate valves, and ensure that they always maintain optimal performance when put into use subsequently.
What are the constituent materials of gate valves?
The components of a gate valve include multiple core structures such as the valve body, valve stem, gate plate, and valve seat. There are significant differences in the materials of different components — ranging from metal materials such as carbon steel, stainless steel, and ductile iron to non-metallic materials such as rubber, PTFE (Polytetrafluorethylene), and graphite. Each material has a specific tolerance range for conditions such as ambient temperature, humidity, and pH value. If you have projects related to gate valves, regarding its configuration and usage plans, we at delco valve, a professional valve manufacturer, can provide you with assistance at any time.
Suitable environmental conditions for storing and maintaining materials
| Material Category | Normal Temperature Range | Humidity Range | Taboo Environment/Medium (with specific values) |
|---|---|---|---|
| Carbon Steel (Valve Body/Valve Cover/Bolt) | -20~425℃ | ≤65% | 1. Strong corrosive medium: pH < 2 strong acid (such as hydrochloric acid, sulfuric acid), pH > 12 strong alkali (such as sodium hydroxide solution); 2. High temperature environment containing chloride ions: chloride ion concentration > 100ppm; 3. Strong oxidizing medium (such as nitric acid concentration > 30%) |
| Stainless Steel (304/316) | -270~450℃ (304), -270~550℃ (316) | ≤65% | 1. Chloride ion concentration > 200ppm high temperature/humid environment (such as seawater, high-salt industrial water); 2. Fluoride ion concentration > 50ppm strong oxidizing medium; 3. Ultra-strong acid medium with pH < 1 |
| Ductile Iron | -10~300℃ | ≤65% | 1. Low temperature environment: temperature < -10℃ (brittle fracture); 2. Strong alkaline medium: pH < 2 strong acid, pH > 12 strong alkali; 3. Environment containing ammonia ions (ammonia ion concentration > 150ppm) |
| Copper Alloy (Stem Nut) | -20~250℃ | ≤65% | 1. Ammonia medium concentration > 100ppm (such as ammonia water, ammonia-containing industrial medium); 2. High temperature strong oxidizing medium (such as nitric acid concentration > 30%, hydrogen peroxide solution concentration > 27.5%) |
| Soft Seal Material (Rubber) | -10~80℃ | ≤65% | 1. High temperature environment: temperature > 80℃ (aging, deformation); 2. Strong solvent (such as acetone, methyl ethyl ketone, etc.); 3. Strong corrosive medium: pH < 3 strong acid, pH > 11 strong alkali |
| Soft Seal Material (PTFE) | -200~260℃ | ≤65% | 1. High temperature environment: temperature > 260℃ (decomposition); 2. Strong oxidizing medium (such as fuming nitric acid concentration > 50%, concentrated sulfuric acid concentration > 90%); 3. Molten alkali metals (such as sodium, potassium) |
| Graphite Packing | -200~600℃ | ≤65% | 1. Strong oxidizing medium: concentrated sulfuric acid concentration > 40%, concentrated nitric acid concentration > 10%; 2. Strong oxidizing gas (such as chlorine, ozone concentration > 500ppm) |
| Transmission Device (Aluminum Alloy Shell) | -10~60℃ (Electric), -20~80℃ (Pneumatic) | Electric: ≤85%; Pneumatic: ≤85% | 1. Environment containing chloride ions (chloride ion concentration > 2000ppm); 2. Strong corrosive gas (such as hydrogen sulfide concentration > 100ppm, chlorine gas concentration > 20ppm); 3. High temperature and high humidity environment (prone to circuit/air cylinder failure) |
| Transmission Device (Plastic Handwheel) | -10~50℃ | ≤65% | 1. Strong light and ozone environment (aging and cracking risk); 2. High temperature environment: temperature > 50℃; 3. Organic solvents (such as ethanol, acetone direct contact) |
Inspection of Gate Valves Before Warehousing
Before warehousing, gate valves must undergo thorough inspection and registration to ensure they are qualified and in good condition upon entry. Any issues detected should be addressed promptly. A clear understanding of the valves' status facilitates subsequent maintenance work.
The core risks of bulk storage include "environmental corrosion", "component jamming", and "sealing failure". Maintenance measures must be formulated based on storage conditions and the characteristics of the valves.
Storage Environment Control: Minimizing Corrosion Risks at the Source
- Temperature and Humidity Control: The storage warehouse must be well-ventilated and dry, with temperature maintained at 5-35℃ and relative humidity ≤ 65% (dehumidifiers should be installed in humid areas to prevent rusting of valve bodies/valve stems);
- Isolation from Corrosive Substances: Strictly prohibit co-storage with corrosive materials such as acids, alkalies, salts, and organic solvents. Moisture-proof pads (e.g., rubber pads/plastic films) should be laid on the ground to avoid direct contact between valves and the ground;
- Classified Storage: Store in separate zones by "model specification", "material (carbon steel/stainless steel/cast iron)", and "driving mode (manual/electric/pneumatic)" with clear labeling (e.g., hang tags indicating model, storage date, and maintenance cycle); Stainless steel valves must be stored separately to prevent electrochemicals corrosion caused by contact with carbon steel.
Regular Maintenance: Activating Components Periodically to Prevent Functional Failure
Establish maintenance cycles based on storage duration (recommendations: once a month for storage ≤ 3 months; once every two weeks for 3–6 months; once a week for ＞ 6 months). The maintenance content covers key components:
| Maintenance Components | Maintenance Measures | Purpose |
|---|---|---|
| Valve Body + Valve Cover | 1. Inspect the appearance weekly, and repair rust spots with anti-rust paint in time (for carbon steel valves); 2. Inspect the sealing surface every 2 months, apply anti-rust grease (such as Vaseline), and protect it with plastic film or cover. | Prevent valve body corrosion, sealing surface damage/oxidation |
| Valve Stem + Gate | 1. Manually rotate the handwheel every 2 weeks (rotate the handwheel clockwise to lift the gate by 2-3 turns, then rotate counterclockwise to return to the closed position); 2. Apply lithium-based grease to the valve stem thread regularly to prevent thread jamming (apply after opening the valve). | Keep the gate/valve stem active in movement, prevent thread seizure |
| Valve Seat | 1. Inspect the valve seat sealing surface monthly, and replace the gasket if it is aged and cracked; 2. Perform low-pressure sealing test on the valve every 3 months (use a sampling valve to perform "low-pressure sealing test" at 0.1MPa, ensuring no leakage). | Ensure the sealing performance of the valve seat, prevent sealing aging and failure |
| Transmission Device | 1. Manual type: Check the handwheel tightness monthly, loosen and retighten if loose; 2. Electric type: Conduct electrical testing every 2 weeks (run for 1-2 minutes), check if the actuator operates smoothly, and tighten the terminal block anti-loosening screws; 3. Pneumatic type: Drain the condensed water in the air circuit weekly (for full pneumatic type), use air source dew-point reducing agent and other special agents regularly. | Keep the transmission device functioning normally, prevent actuator failures |
| Stuffing Box + Gland | 1. Check the stuffing box gland tightness monthly, and tighten it if slightly loose (avoid over-tightening to prevent stem jamming); 2. Replace the packing every 3 months (replace in time if aging/breakage is found; fill evenly when replacing to ensure sealing). | Prevent packing aging and medium leakage (to avoid subsequent troubles) |
Special Maintenance: Special Protection for Vulnerable Components
Soft-seal gate valves: Sealing surfaces (such as rubber sealing rings) must avoid direct sunlight; the warehouse should be light-shielded. Check monthly whether the sealing rings have shrinkage/deformation, and replace them with new ones if necessary;
Electric/pneumatic actuators: Actuator housings must be covered with dust covers, and junction boxes/air source interfaces should be sealed with plugs to prevent dust/moisture from entering;
Large-diameter gate valves (DN＞300): With long valve stems, temporary supports (e.g., plastic brackets) should be added in the middle of the valve stems to prevent bending or deformation.
Outbound Re-inspection: Ensuring Valves Meet Standards and Are Ready for Direct Use
A comprehensive re-inspection must be conducted before gate valves are shipped out to eliminate potential hazards incurred during storage and ensure they are ready for normal installation and use. The re-inspection items are as follows:
Visual Re-inspection
Valve bodies and bonnets shall be free of new dents or rust; flange sealing surfaces shall be free of scratches, and anti-rust grease shall not be dried out;
Handwheels and actuator housings shall be intact with clear markings (e.g., model, pressure class, flow direction arrows).
Functional Testing
For manual valves: Rotate the handwheel; the gate shall lift and lower smoothly without jamming, with clear fully closed/fully open positions (alignment required if there are stroke markings);
For electric/pneumatic valves: Power/air supply testing shall be conducted; the valve shall open and close in place with normal feedback signals (e.g., limit switch activation);
Sealing test: Sampling (proportion ≥5%) shall undergo a "hydrostatic sealing test" (test pressure is 1.1 times the rated working pressure), with pressure maintained for 5 minutes; no leakage shall occur at valve bodies, bonnets, stuffing boxes, or valve seats.
Inspection of Component Integrity
Connecting bolts and nuts shall be complete; packing glands shall be tight; protective covers for electric valve terminal blocks shall be intact; Supplementary accessories (e.g., sealing rings, installation instructions, certificates of conformity) shall be complete and match the valve model.
Cleaning and Packaging

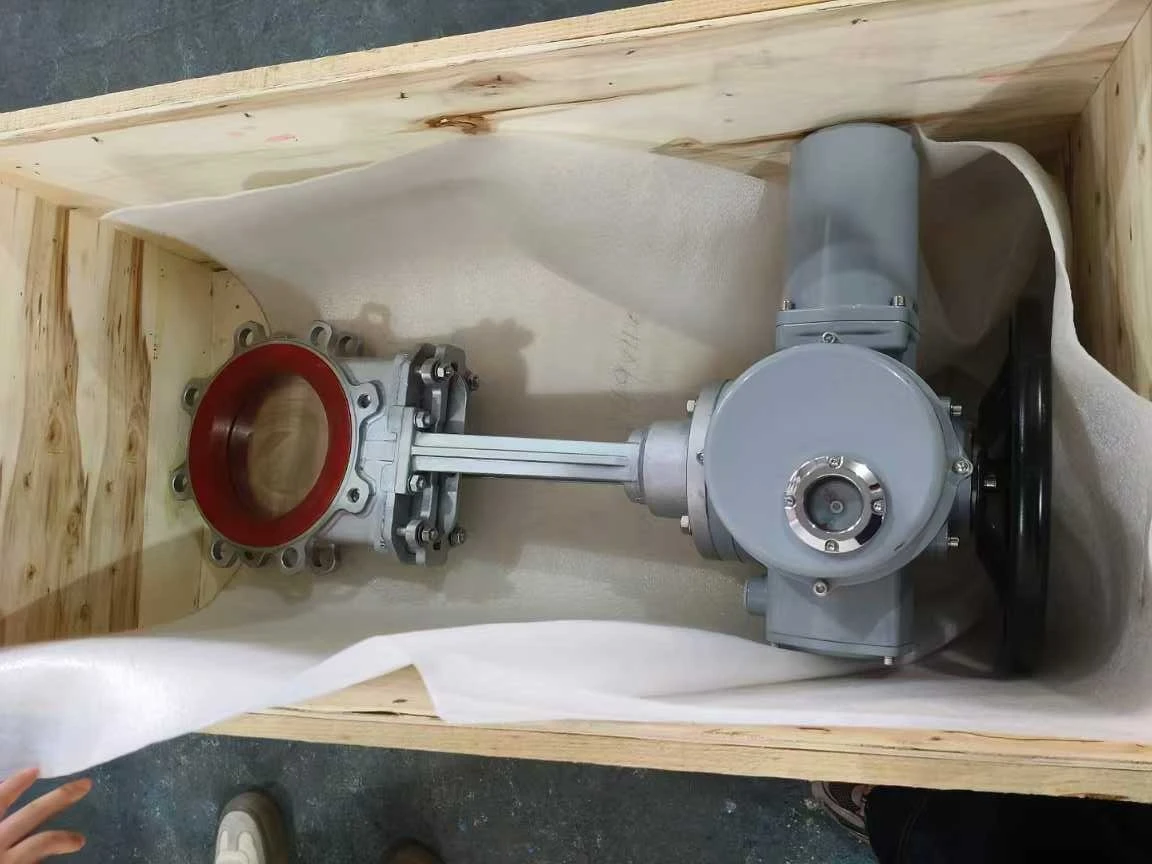

Remove anti-rust grease and dust from the valve surface; flange ports shall be sealed with plastic plugs to prevent impurities from entering the valve body; Small valves shall be wrapped with bubble wrap; large valves shall be packaged in wooden cases (marked with "Handle with Care" and "Moisture-Proof" labels) to avoid damage during transportation.
Abnormal Situations and Handling
Abnormalities detected during maintenance must be addressed immediately to prevent escalation:
1.Valve body cracks/severe rust: Isolate the valve, mark it as "Unusable", contact the manufacturer to assess repairability; scrap it if irreparable.
2.Valve stem jamming (unable to rotate): Dismantle the valve bonnet, check for rust on valve stem threads or gate blockage. Clean rust, apply lubricating grease, reassemble and test; replace the valve stem/gate if jamming persists.
3.Aging of sealing rings in soft-seal valve seats: Uniformly replace with sealing rings of the same specification and material (e.g., nitrile rubber, fluororubber, selected based on medium compatibility), and conduct a sealing test after replacement.
4.Malfunction of electric actuators: Contact the actuator manufacturer for repairs, replace damaged components (e.g., motor, reducer). After repair, perform opening and closing tests at least 3 times to ensure normal operation.
Through the full-process management of "warehousing inspection - daily maintenance - outbound re-inspection" as outlined above, bulk-stored gate valve components can be maximally guaranteed to remain undamaged and functionally intact.
