Valve Symbols Unveiled: A Practical Guide for Beginners

Introduction

Have you ever come across those peculiar symbols on engineering drawings, like small triangles, circles, or lines with arrows? These are valve symbols, and they play a crucial role in piping systems. Valves control the flow of liquids or gases, and their symbols are the "universal language" used by engineers, designers, and field technicians. Whether you're an engineering student, a valve manufacturer, a maintenance worker, or just curious about engineering drawings, this guide will introduce you to the world of valve symbols, with a special focus on the check valve symbol. Let's dive in and explore!

What Are Valves and Valve Symbols?

Valves are devices in piping systems that control fluid flow—think of them as gates that open, close, or adjust the flow of liquids or gases. Valve symbols, on the other hand, are graphical representations used in engineering drawings, such as P&ID (Piping and Instrumentation Diagram), to show the type and function of valves. The check valve symbol, for instance, indicates a valve that prevents backflow. These symbols act like road signs, helping engineers and valve manufacturers quickly understand how a system works.

Common Valve Types and Their Symbols

Let's explore some common valve types and their symbols, including the check valve symbol, which you'll see in P&ID drawings. These symbols are simple and easy to recognize, making it a breeze to read most engineering diagrams!

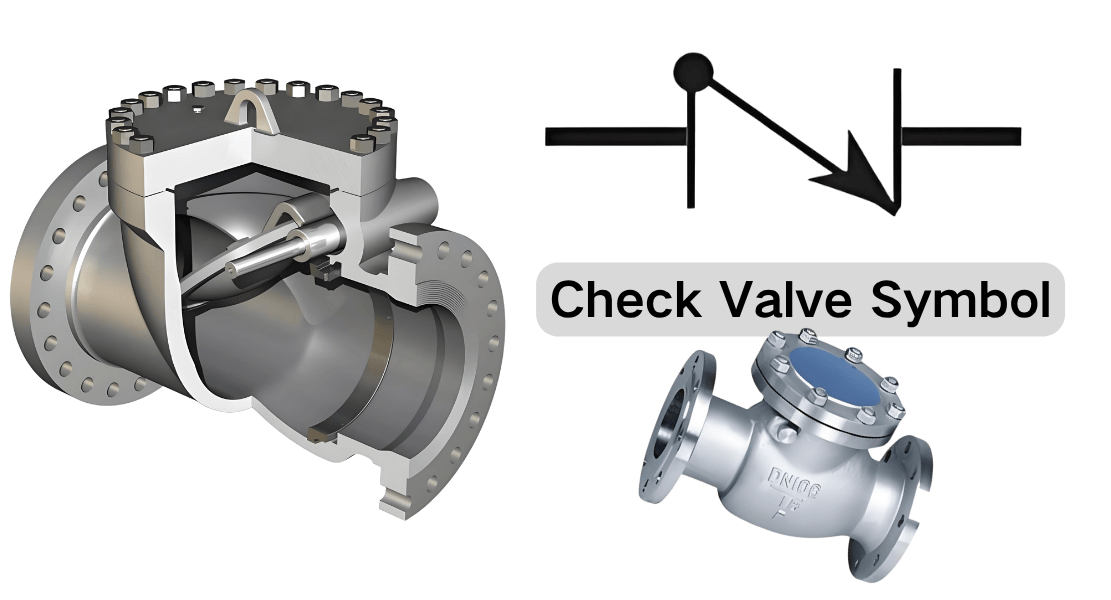

Check Valve

A check valve is an automatic valve that allows fluid to flow in one direction only, stopping backflow to protect pipes and equipment from pressure surges or water hammer. Inside, it has a valve body (connecting pipes), a disc (the moving part that opens or closes), and a seat (where the disc seals to block reverse flow); some include a spring (aiding closure) or a hinge (letting the disc swing). Forward fluid pressure pushes the disc open, while backflow pressure, gravity, or a spring forces it shut—no external power needed.

• Function: Prevents backflow, acting like a "one-way street"; for fluid.
• Symbol: The check valve symbol is a triangle with an arrow pointing in the allowed flow direction, sometimes shown as two triangles meeting at their tips.
• Application: Used in water pumps or gas pipelines to prevent reverse flow damage.

In P&ID diagrams, The basic check valve symbol features a straight line (representing the pipe) with a diagonal or angled line crossing it at about 45 degrees—this diagonal line signifies the valve's blocking mechanism for reverse flow. An arrow is often added alongside the pipe to indicate the allowed flow direction, making the one-way function clear. For specialized types (like spring-loaded check valves), a small spring icon may be added near the diagonal line. These symbols are compact and instantly recognizable, ensuring quick identification of check valves in complex process diagrams.

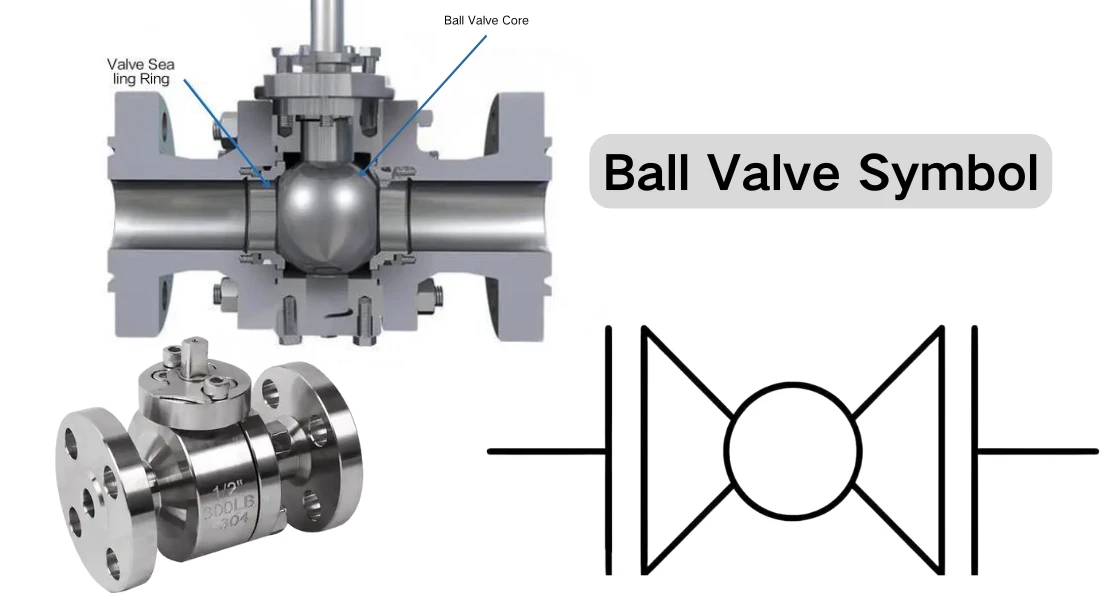

Ball Valve

A ball valve is a quarter-turn valve with a hollow, perforated ball inside that controls flow. Rotating the valve handle 90 degrees turns the ball—when its hole aligns with the pipe, fluid flows; when turned perpendicular, the solid part blocks flow.

• Function: Quickly turns flow on or off, like a "switch" for fluids.
• Symbol: A circle with a horizontal line (representing the ball), sometimes with a small circle for the handle.
• Application: Found in home plumbing or natural gas lines for fast shutoff.

In P&ID diagrams, ball valve symbols clearly reflect their quarter-turn operation. The basic symbol consists of two intersecting lines: a straight line representing the pipe, and a perpendicular line (at 90 degrees) crossing it to denote the ball's port. A small circle or square is often added at the intersection to symbolize the ball itself. For manual ball valves, a short line (indicating the handle) extends from the symbol at 45 degrees to show the "open" position. Automated versions include an actuator symbol (a rectangle) attached to the handle line, with labels like "M" (motor) or "P" (pneumatic) if needed.

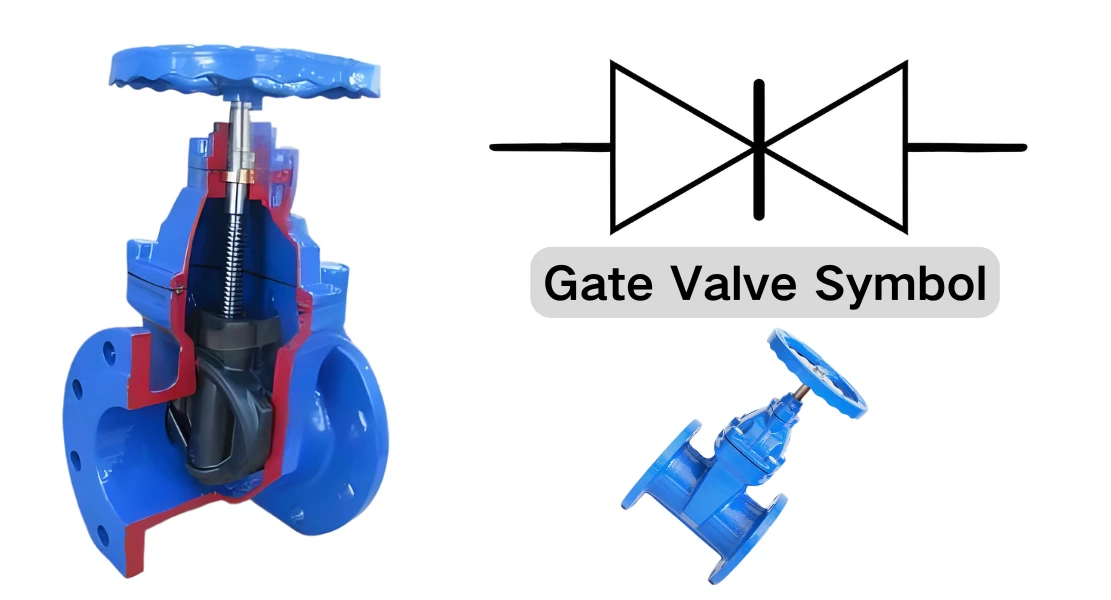

Gate Valve

A gate valve is a linear-motion valve used to fully open or close fluid flow. It has a flat, gate-like disk that slides up or down to control the passage. Turning the handwheel raises the gate, allowing unrestricted flow; lowering it seals against the seat to block flow completely.

• Function: Fully opens or closes the flow, like a "big gate";
• Symbol: A rectangle with a thick horizontal line in the middle.
• Application: Steam systems or oil pipelines, ideal for full open/close operations.

In P&ID diagrams, gate valve symbols shows two parallel lines (representing the gate) between pipe lines, with a vertical line (the stem) extending from the gate. For manually operated gate valves, a handwheel icon is often added to the stem. Automated versions (pneumatic, electric, or hydraulic) include additional symbols: a small rectangle (actuator) attached to the stem, sometimes labeled with "P," "M," or "H" to indicate the drive type.

Butterfly Valve

A butterfly valve is a quarter-turn valve with a circular disk (or "butterfly") mounted on a rod inside. Rotating the rod 90 degrees spins the disk—when aligned with the pipe, fluid flows freely; when turned perpendicular, it blocks the path.

• Function: Regulates flow by rotating a disc, like butterfly wings.
• Symbol: A circle with a diagonal line, representing the rotating disc.
• Application: Water treatment plants or HVAC systems for large flow control.

A butterfly valve's P&ID symbol reflects its core design: a simple circle or rounded shape (representing the valve body) with a diagonal line or flattened "V" (the disk) bisecting it, plus a stem line (the rod) through the center. This symbol works because the valve's defining trait—its quarter-turn, disk-based operation—is easy to distill visually: the diagonal disk shows how it aligns with flow when open or blocks it when turned 90 degrees. The simplicity mirrors the valve itself: compact, with a clear, direct function, making the symbol quick to recognize in complex P&ID diagrams, where clarity about flow control mechanisms is key.

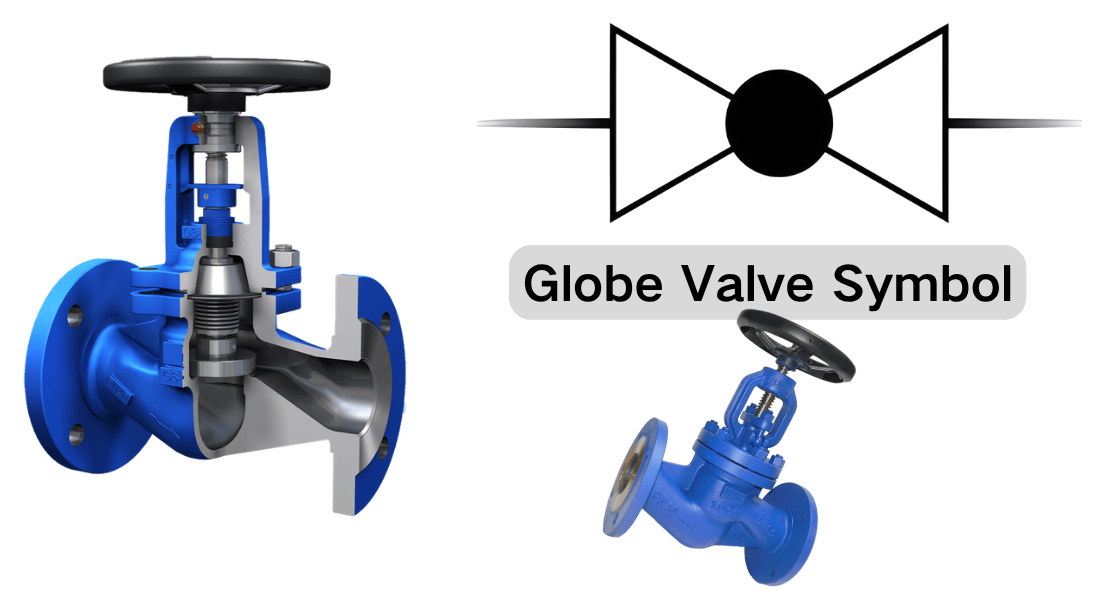

Globe Valve

A globe valve is a linear-motion valve used to regulate or shut off fluid flow. It has a movable disk (or plug) that closes against a fixed seat, controlled by a handwheel or actuator. Turning the handwheel raises or lowers the disk—lifting it opens the flow path; lowering it seals against the seat to stop flow.

• Function: Precisely adjusts flow, like a "faucet" for fine-tuning.
• Symbol: A circle with a small black dot in the center, indicating the valve core.
• Application: Chemical processes or heating systems requiring precise control.

Globe valve symbols are distinct and reflect their linear-motion design. The basic symbol features a straight horizontal line (representing the pipe) with a vertical line (for the stem) intersecting it. A small circle or square at the intersection denotes the valve's disk, and the vertical stem line often extends upward. For manual globe valves, a handwheel icon is added to the top of the stem line. Automated versions replace the handwheel with an actuator symbol (a rectangle), sometimes labeled with "P" (pneumatic) or "E" (electric) to indicate the drive type.

Multi-Port Valve (3-way/4-way Valve)

• Function: Directs fluid to multiple paths, like a "crossroad";
• Symbol: Multiple triangles forming an L or T shape to show port directions.
• Application: Diverting flow in heating or cooling systems.

The "Global Language" of Valve Symbols: Standards Explained

Valve symbols, including the check valve symbol, aren't drawn randomly—they follow international standards to ensure everyone understands them. Here are two key standards:

• ISA-5.1: Set by the International Society of Automation, widely used in P&ID diagrams for valves and instruments.
• ISO 10628: An International Organization for Standardization guideline for flow diagrams in chemical and petrochemical industries.

These standards define the shapes, arrows, and connections for symbols. For example, the check valve symbol must show an arrow pointing in the permitted flow direction, while a ball valve's circular symbol represents its spherical core. Valve manufacturers rely on these standards to align their products with engineering designs.

How to Read Valve Symbols in P&ID Diagrams

P&ID (Piping and Instrumentation Diagram) is the backbone of engineering drawings, showing pipelines, valves, and instruments in detail. Here's how to decode valve symbols, like the check valve symbol, in a P&ID:

• Check Arrows: The check valve symbol uses an arrow to show fluid direction.
• Look for Connections: Lines next to the symbol indicate pipe connections (e.g., flanged or threaded).
• Review the Legend: Every P&ID includes a legend explaining symbol meanings—always check it first!
• Note the State: Some symbols include "NO" (Normally Open) or "NC" (Normally Closed) to show the valve's default state.

Real-World Applications of Valve Symbols

Valve symbols, such as the check valve symbol, are used across industries. Here are some examples:

• Chemical Industry: The check valve symbol appears in diagrams to show valves preventing chemical backflow, protecting reactors.
• Water Treatment: Butterfly valve symbols indicate flow regulation in water treatment plants.
• Oil and Gas: Ball valve symbols mark quick shutoff points for safety.
• Power Plants: Gate valve symbols show steam flow control for stable operations.

For instance, in a water treatment plant's P&ID, you might see a series of butterfly valve symbols between a pump and a filter, indicating flow regulation points.

Tools for Learning and Drawing Valve Symbols

Want to draw valve symbols yourself? These tools make it easy:

• AutoCAD P&ID: Professional software with a built-in valve symbol library, perfect for complex diagrams.
• Lucidchart: An online tool with user-friendly P&ID templates, including the check valve symbol.
• Microsoft Visio: Great for beginners, allowing drag-and-drop symbol creation.

Tip: Practice by finding a simple P&ID diagram and copying its valve symbols. Start with Lucidchart's free templates!

Why Standardization Matters

Standardized valve symbols, like the check valve symbol, are like a "global language" that prevents confusion and boosts efficiency. Here's why:

• Safety: Incorrect symbols can lead to mistakes, like operating the wrong valve.
• Collaboration: Teams from different countries use standard symbols for smooth communication.
• Compliance: Industries like chemical or oil must meet standards like OSHA or EPA, which valve manufacturers follow.

How to Deepen Your Valve Symbol Knowledge

Ready to learn more? Here are some great resources for valve symbols and their applications:

• Online Tutorials:
  • Tameson: Valve Symbols in P&ID: Simple explanations with examples of symbols, including the check valve symbol.
  • Dombor: Valve Symbols 101: A detailed guide for beginners.
• Courses:
  • Search for P&ID courses on Coursera or Udemy to learn about piping and valve symbols.
• Books:
  • Piping and Instrumentation Diagram Development: A deep dive into P&ID design.
• Forums:
  • Reddit: r/MechanicalEngineering: Connect with engineers to discuss valve symbols.
  • Eng-Tips Forum: Professional discussions on valves and P&ID.

Valve manufacturers often provide resources on their websites, explaining how their products align with standard symbols like the check valve symbol.

Practical Steps: From Learning to Sharing

Put your knowledge into action with these steps:

1. Find a Diagram: Download a simple P&ID and identify valve symbols.
2. Draw Symbols: Use Lucidchart or paper to sketch symbols like the check valve symbol.
3. Share Knowledge: Write a blog, post on LinkedIn, or share on Reddit to teach others.
4. Ask Questions: Discuss with peers or on forums to confirm your understanding.

Conclusion

Valve symbols are the "code" of the engineering world, and learning them is like getting a key to unlock piping systems. Whether you're a student, engineer, valve manufacturer, or maintenance worker, mastering symbols like the check valve symbol will make you more confident in your work. This guide is your starting point—keep exploring and practicing! Have questions? Feel free to ask, and let's dive deeper together!
